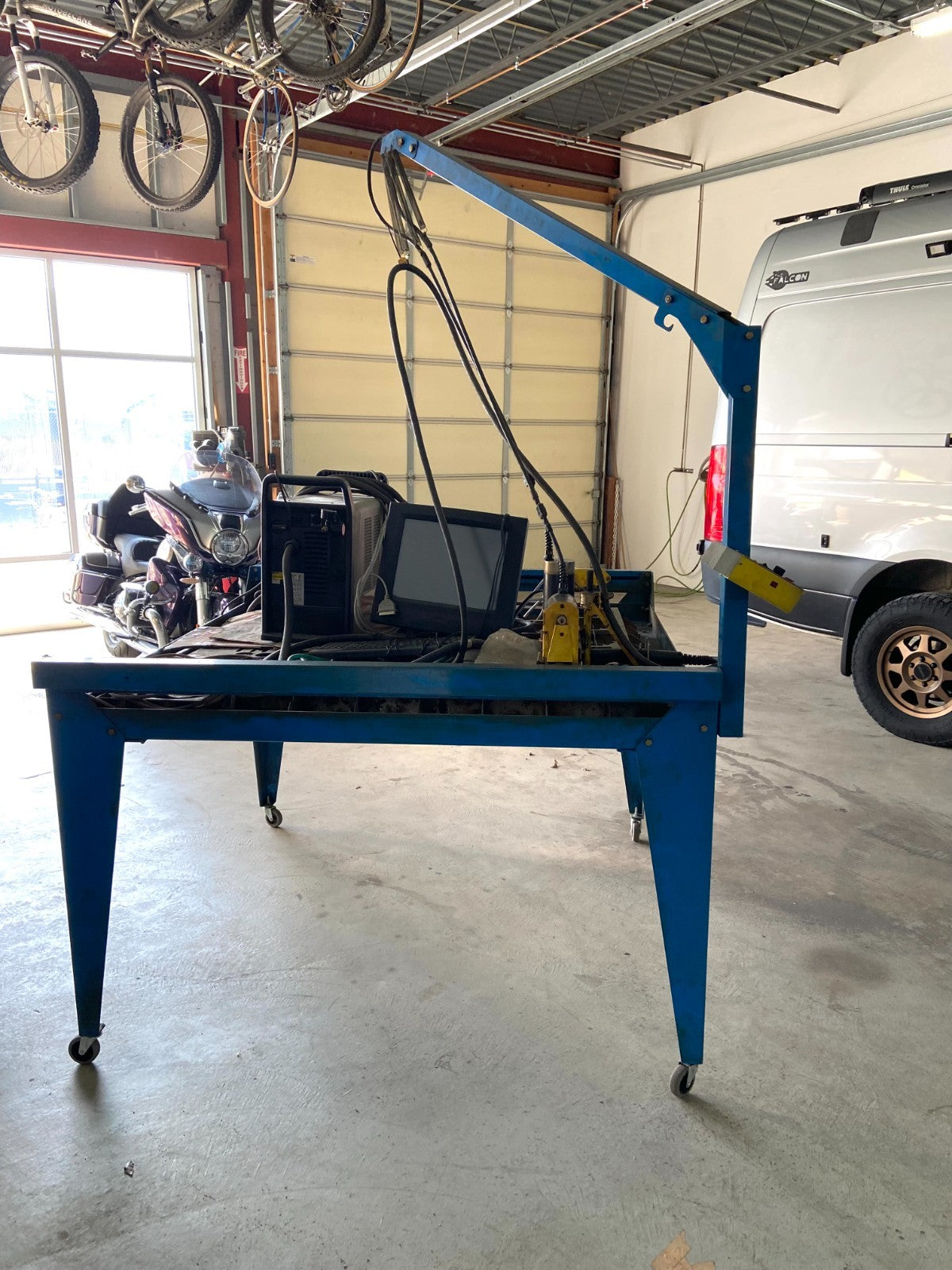

PlasmaCam DHC CNC Plasma Cutting Table 4' X 4' Profiling System w/ DesignEdge
Item Number: 0001
$8,495.00
This is a used plasma cam cutting table. The cutting table runs on 110v It will come with a transfer for the Design Edge program, PC (with Design Edge installed), Monitor, Keyboard, Mouse, Cables/Cords.

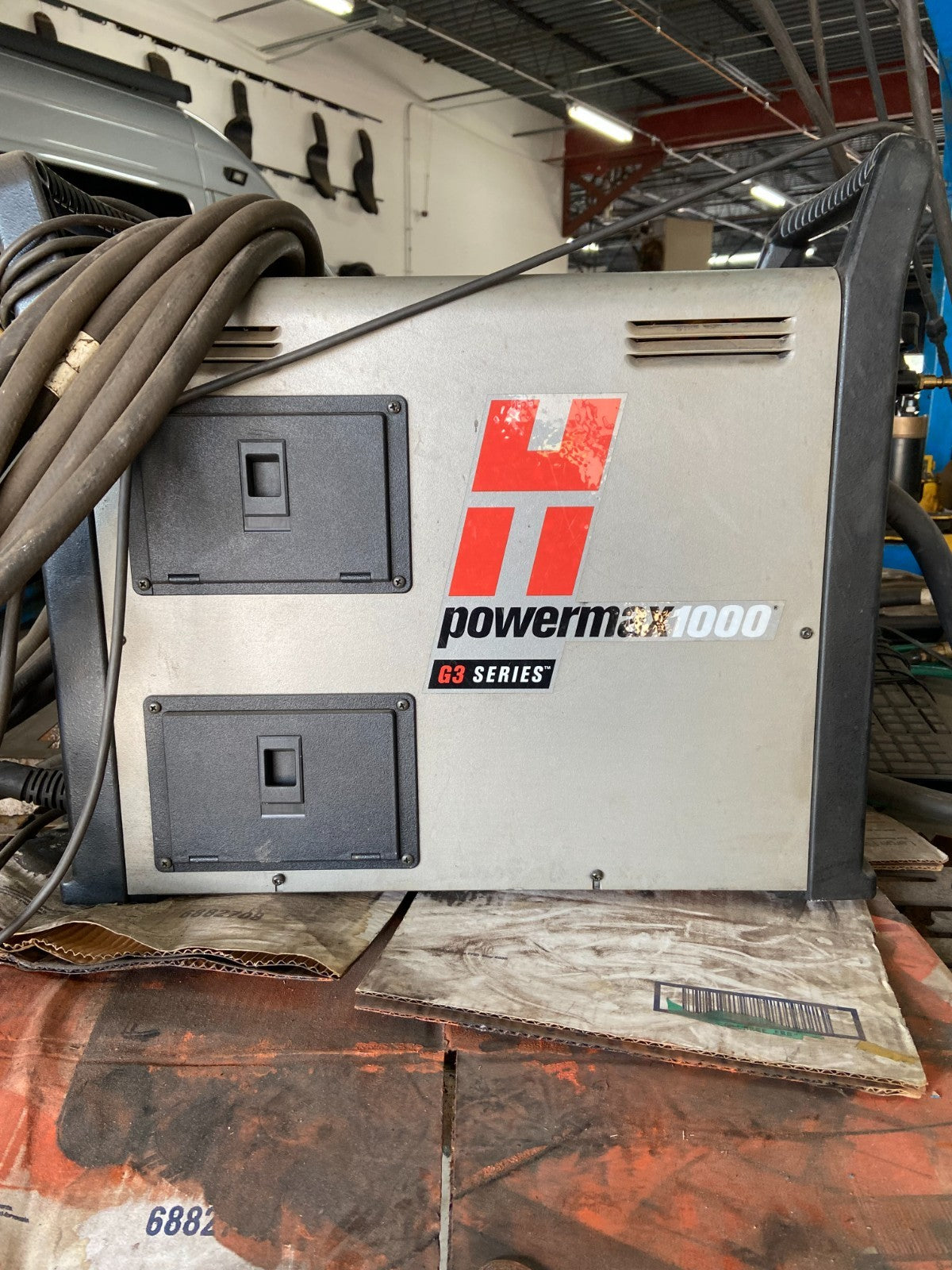

Comes with Hypertherm Powermax1000 Plasma included. It runs on 220v
Offering for local pickup only.
Here is more information taken from the web.
The PlasmaCAM DHC (Digital Height Control) is a 4' x 4' CNC plasma cutting system designed for precise, automated metal fabrication using hand-held torches. It features servo motors, proprietary
DesignEdge software
for CAD/CAM, and auto-adjusts torch height for high-quality cuts on steel and aluminum.
Key Specifications & Features
-
Cutting Capacity:
(1,200 mm x 1,200 mm)
- Material Thickness: Up to 3/8" (commonly with Hypertherm Powermax 380) or 1-inch+.
- Speed: Cutting/Rapid speeds up to 1,000 IPM (inches per minute).
- Resolution: 0.0005" (X/Y axes), 0.002" (Z-axis).
- Power: 115/230 VAC, 1-phase.

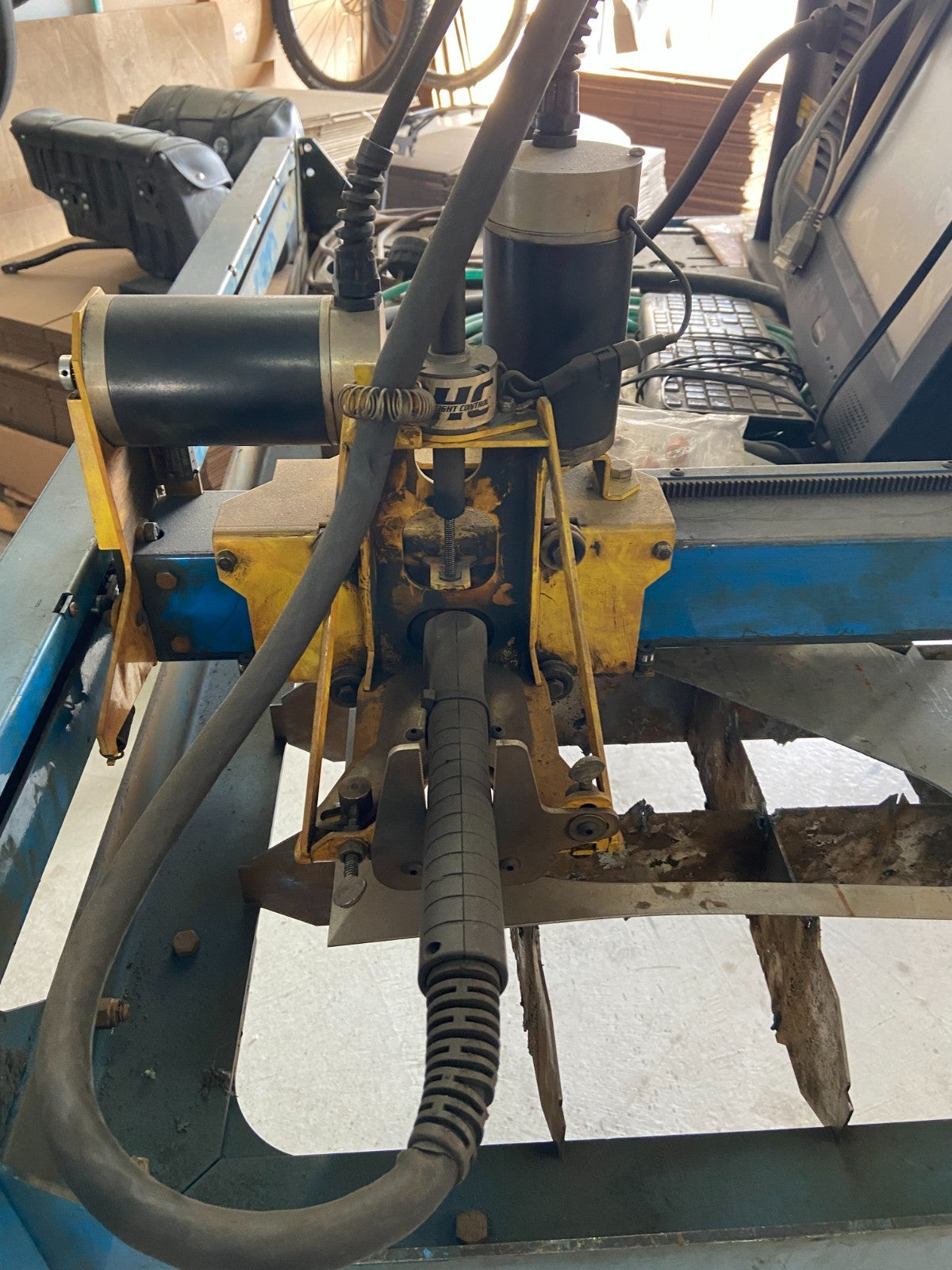

- Control: DHC™ uses arc voltage feedback to maintain precise torch height over uneven metal.
Software & Operation
- DesignEdge Software : Simplifies design, allows importing of images, and handles scanning, CAD, and CAM in one package.
- Setup: Pre-assembled, typically requiring 2-4 hours for initial setup.
- Computer Requirements: Originally designed to run off a PC via a parallel port,
.
